Schneider-Canet 120mm
field howitzer M. 1909
|
|
||
|

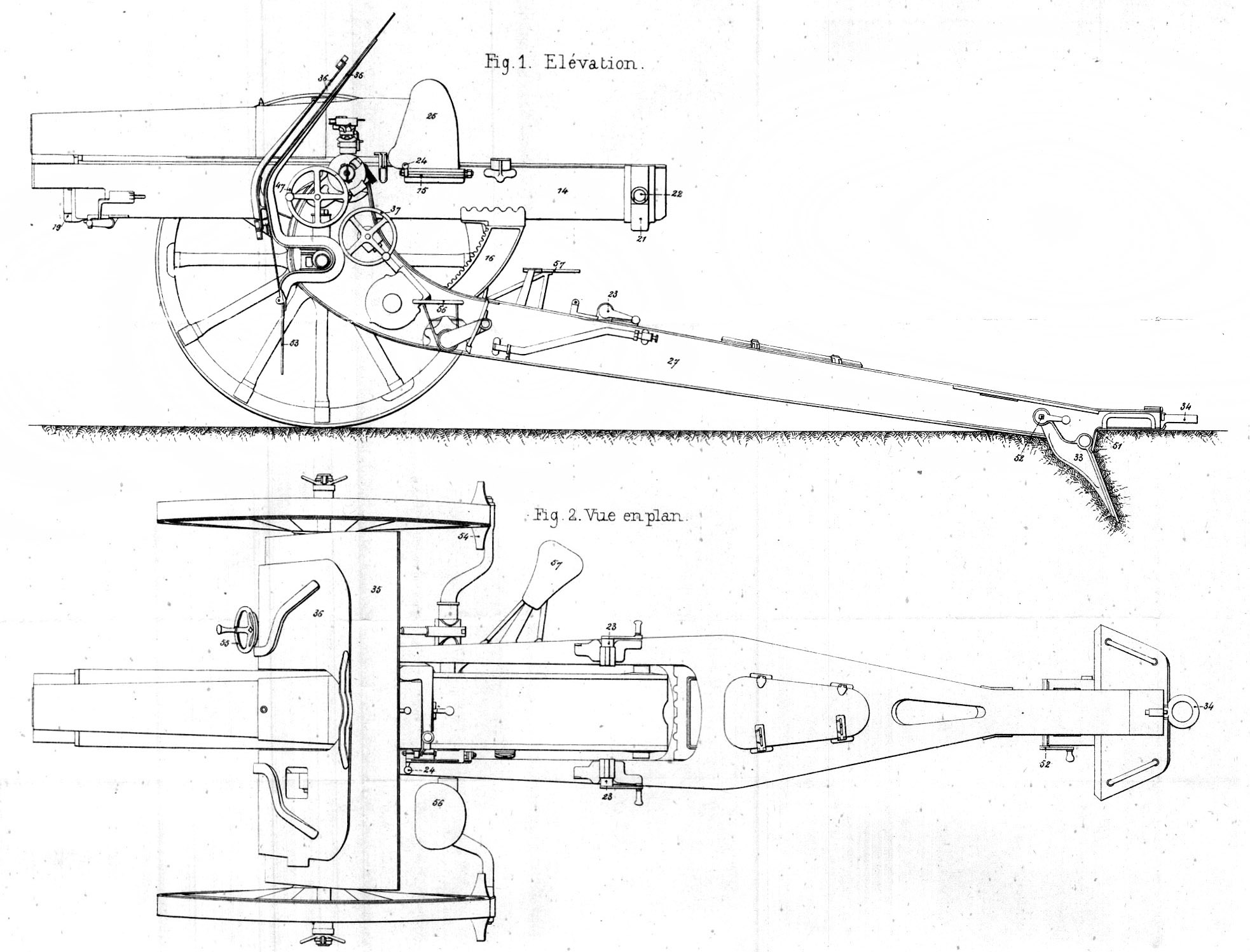

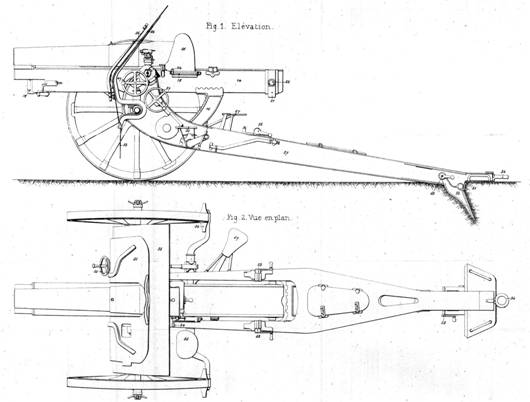

Gun and carriage |
||
|
14 cradle 17 trunnion 20 cradle middle transom 23 travelling brakes 26 29 elevating worm
32 elevating gear pinion 35 upper shield 38 bevel pinion 41 elevating gear casing 45 pinion 48 traversing gear casing 51 spade housing plate 54 wheel brake 57 firer seat |
15 firing gear 18 slide 21 cradle rear transom 24 lanyard toggle 27 trail sides 30 elevating worm case 33 trail spade 36 shield plates
39 elevating worm
42 traversing sleeve
46 gearbox 49 spring plunger
52 spade connecting axis 55 brake operating handle |
16 elevating thooted arc 19 cradle front transom 22 brakes seating 25 protection plate 28 axle cover 31 screw bracket 34 trail eye 37 elevating handwheel 40 elevating worm wheel 43 - 44
hinges 47 traversing handwheel 50 lever 53 lower shield 56 aimer seat |
|
|
|
|

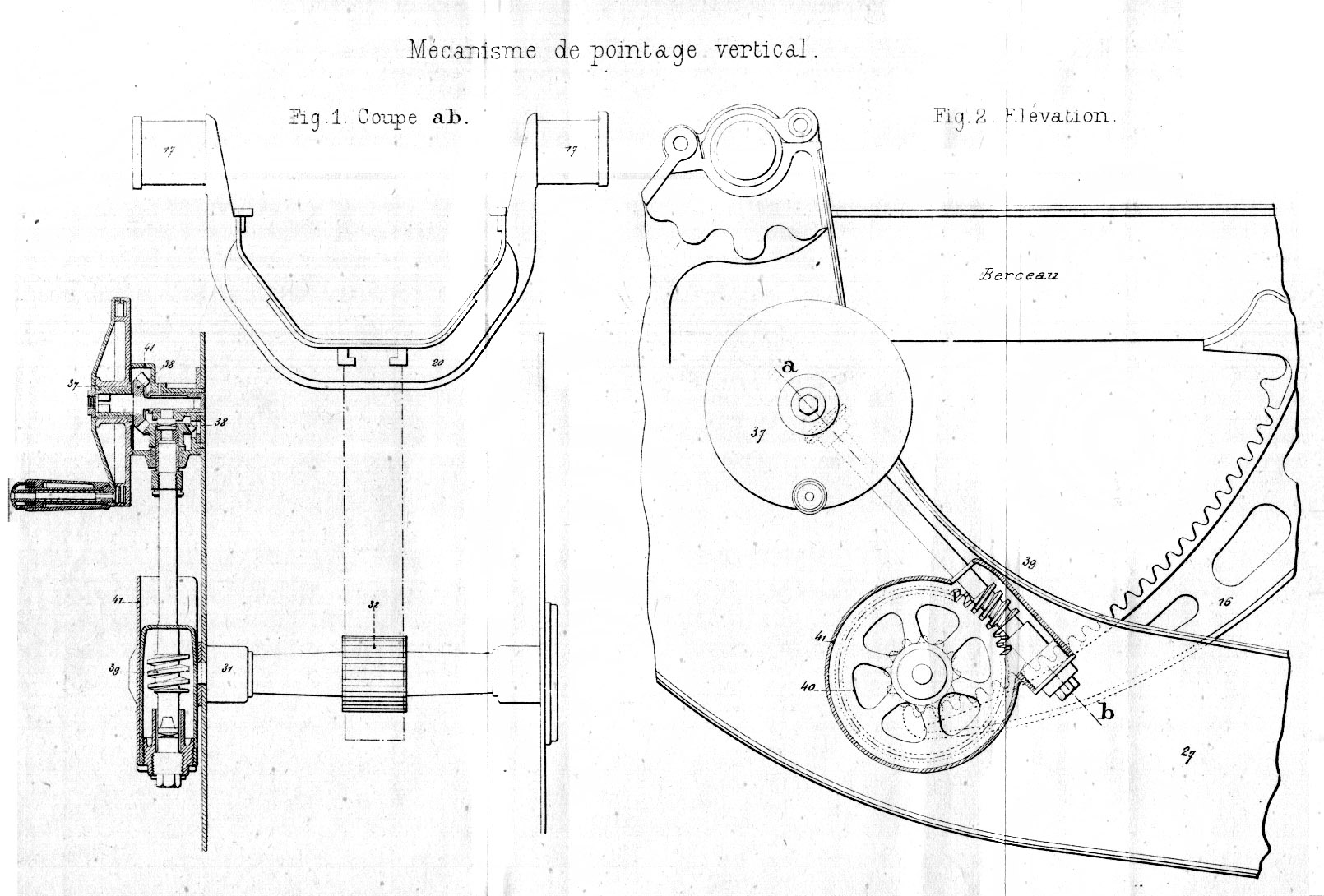

Elevating gear |

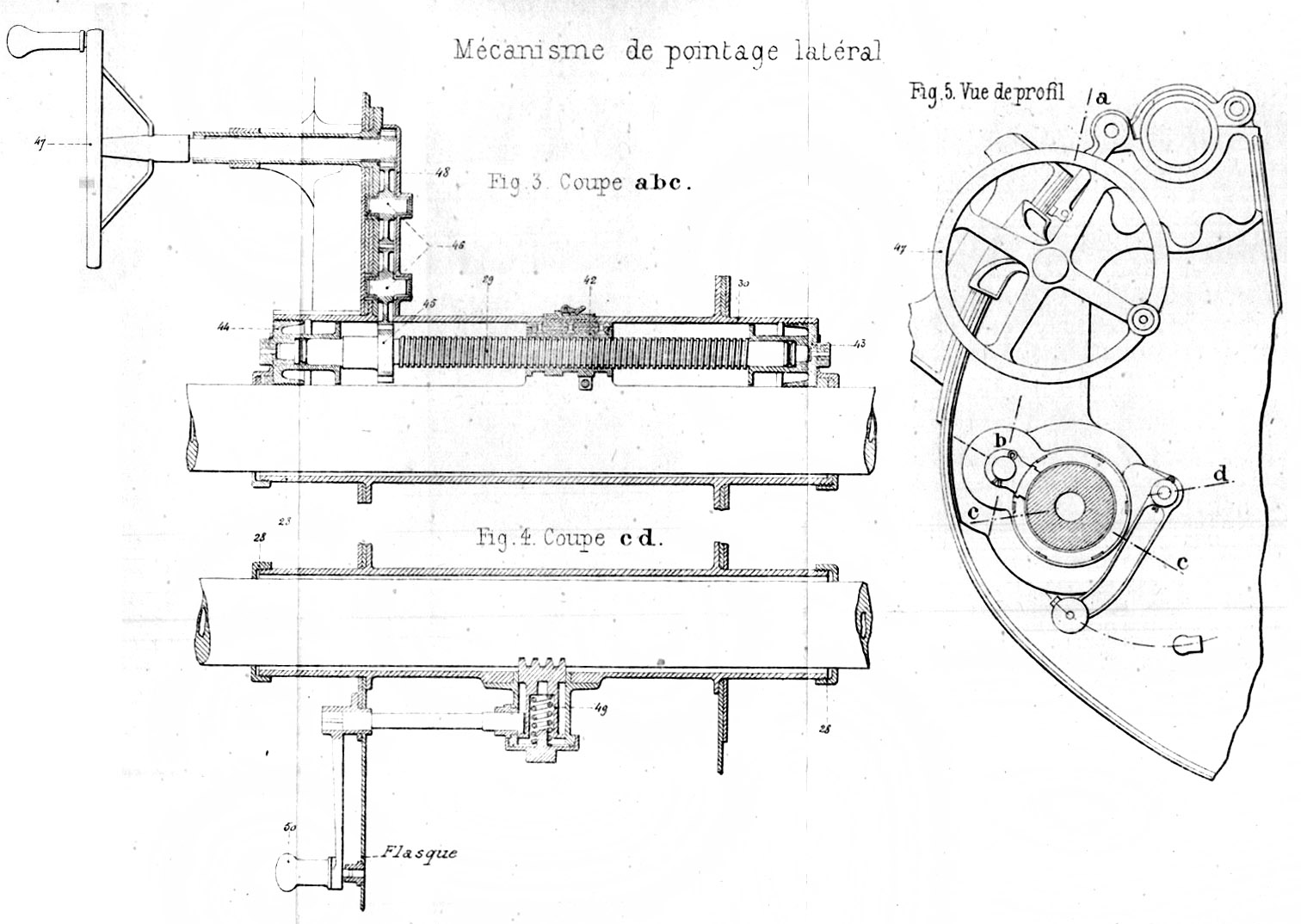

Traversing gear |
|
gun and
carriage |
