Schneider-Canet 240mm coast gun M. 1907









Bulgarian designation :

240-мм брегово оръдие Д-45 “Шнайдер”

Schneider designation :

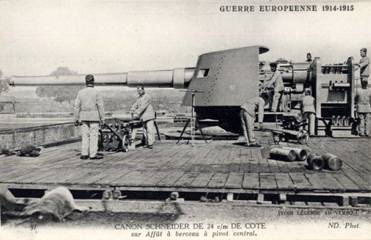

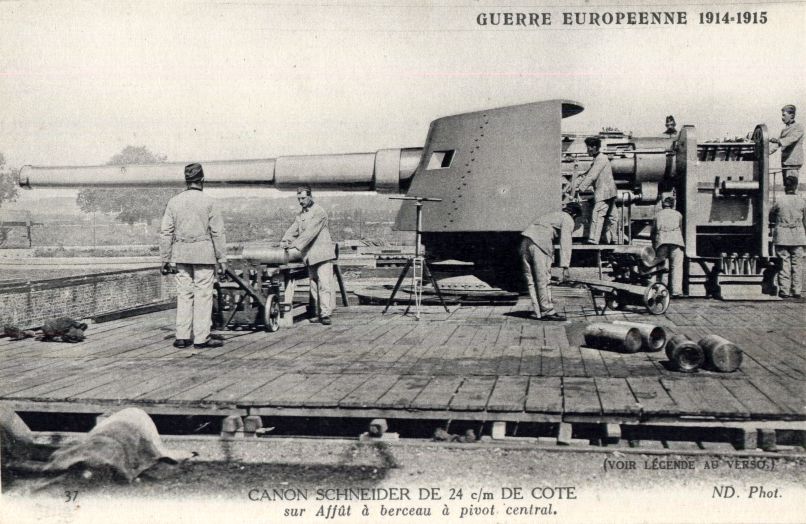

Canon à tir rapide de 24 cm L/45 de côte sur affût à berceau à pivot central

Calibre :

240 mm L/45

Weight of the barrel :

24500 kg

Weight of the breech-block :

425 kg

Weight of the carriage :

16100 kg

Weight of the mask :

4300 kg

Weight of the bedding :

3000 kg

Weight in action :

40600 kg

Barrel length :

10.8 m

Rifling

length :

8.539 m

angle of twist :

5°

Number of barrel grooves :

60

Battering charge :

47.4 kg of Pyroxyline smokeless powder

Shell

weight :

170 kg – charge : 7.5 kg

muzzle velocity :

800 m/s

max. range :

10365 m

H.E. Shell

weight :

170 kg – charge : 17.44 kg

muzzle velocity :

800 m/s

max. range :

10365 m

Piercing shell

weight :

170 kg – charge : 2.5 kg

muzzle velocity :

800 m/s

max. range :

11520 m

Elevation :

+ 12° / - 5° 30’

Traversing angle :

360°

Height of the line of sight :

2 m

Recoil :

650 mm

Rate of fire :

3 rounds a minute

Remarks :

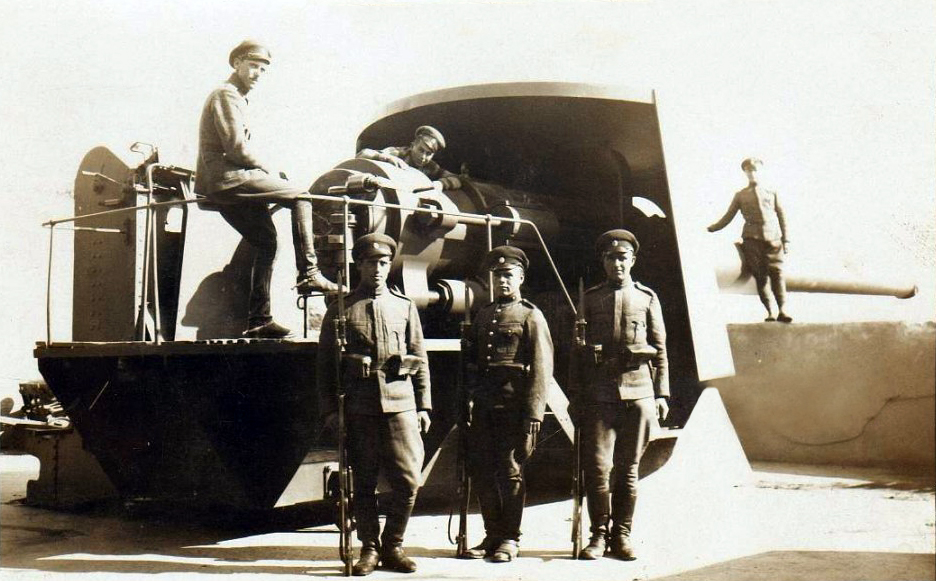

Coast gun with central pivot mounting cradle carriage (description). It could fire three kinds of shell : ordinary, piercing and H.E.
