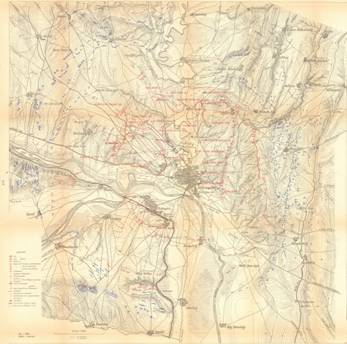

The artillery batteries of the Odrin fortress
|
North-Western
Sector Western Section Kazan Tepe Group Bty. 1 : south of the work of
Hadirlik, for 6 87mm field guns, but not armed Bty. 2 : 6 87mm field guns Bty. 3 : 4 105mm long guns Bty. 4 : 6 87mm field guns Bty. 5 : 6 87mm field guns Bty. 6 : 6 150mm long guns on coast
carriage Bty. 7 : 6 105mm long guns in
concrete position Bty. 8 : 6 87mm field guns 6 machine guns The batteries,
except Bty. 8, were placed behind the ridge, covered by the infantry
positions on the slope. Kuru Cesme Group Bty. 9 : 6 210mm mortars in
concrete position Bty. 10 : 6 150mm long guns on coastal carriages in concrete position Bty. 11 : 6 150mm long guns in
concrete position Bty. 12 : 6 150mm long guns on coastal carriages in concrete position Bty. 13 : 6 87mm field guns aitan Tarla Group Bty. 14 : 6 87mm field guns Bty. 15 : 6 87mm field guns Bty. 16 : 3 105mm long guns, old
breastwork of the fort Karagφz Tabia Bty. 17 : 3 105mm long guns, old
breastwork of the fort Karagφz Tabia Bty. 18 : 6 87mm field guns 4 machine guns The batteries
16, 17 and 18 were placed on the ridge. Northern Section Ba Yuk Tepe Kemer Tepe Group Bty. 19 : 6 105mm long guns Bty. 20 : 6 87mm field guns Bty. 21 : 6 87mm field guns Bty. 22 : 6 150mm mortars Bty. 23 : 6 150mm on coastal carriages long guns Bty. 24 : 6 87mm field guns Bty. 25 : 6 87mm field guns Bty. 26 : 6 87mm field guns Bty. 27 : 6 87mm field guns Karagφz Tarla Group Bty. 28 : 6 87mm field guns Bty. 29 : 6 87mm field guns Bty. 30 : 6 150mm long guns on coastal carriages Bty. 31 : 6 87mm field guns Bty. 31 : 6 87mm field guns Bty. 32 : 6 87mm field guns Bty. 33 : 6 150mm long guns on coastal carriages Bty. 34 : 6 87mm field guns Bty. 35 : 6 120mm long guns Bty. 36 : 6 120mm long guns 4 machine guns North-Eastern
Sector Northern Section Bty. 37, for 6 87mm field guns, but
not armed Btys. 37a, 37b, 37c, 37d, 37e :
emplacements for redeploying guns Fort Ta Tabia : 4
150mm long guns Bty. 38 : 6 120mm long guns Btys. 38a, 38b, 38c : emplacements
for redeploying guns Bty. 39 : 6
150mm long guns on coastal carriages Bty. 39a : emplacements for
redeploying guns Bty. 40 : 4
150mm guns on coastal carriages Bty. 40a : 6 87mm field guns Eastern Section Bty. 41 : 6 150mm mortars Bty. 41a : emplacements for
redeploying guns Bty. 42 : 6 87mm field guns Bty. 43 : 6 87mm field guns Bty. 44 : 6 150mm long guns on coastal carriages Bty. 45 : 6 87mm field guns Bty. 46 : 6 150mm mortars Bty. 47 : 6 87mm field guns Bty. 48 : 6 87mm field guns Bty. 49 : 6 87mm field guns Bty. 50 : 6
120mm long guns Bty. 51 : 6 87mm field guns Bty. 52 : 6 87mm field guns Bty. 53 : 6 87mm field guns Bty. 54 : 6 87mm field guns Bty. 55 : 6 150mm long guns on coastal carriages Bty. 56 : 6 150mm long guns on coastal carriages Bty. 57 : 6 120mm long guns Maslak advanced position Bty. 58 : 6 87mm field guns Bty. 59 : 6 87mm field guns Bty. 60 : 6 87mm field guns 10 machine guns Southern
Sector Bosna kφj Group Bty. 61 for 6 150mm long guns on coastal carriages, but not
armed Sinekli Group Bty. 62 : 6 150mm long guns on coastal carriages in concrete
position Bty. 63 : 6 87mm field guns Bty. 64 : 6 150mm long guns on coastal carriages in concrete
position Bty. 65 : 6 87mm field guns 2 machine guns at Demerdes Karagač Tepe Tepe Group Bty. 66 : 6 87mm field guns Bty. 67 : 6 87mm field guns Bty. 68 : 6 150mm long guns on coastal carriages in concrete position Bty. 69 : 6 87mm field guns Bty. 70 : 6 150mm long guns on coastal carriages in concrete position 2 machine guns at Karagač 1 machine gun at Marash |
|
|
