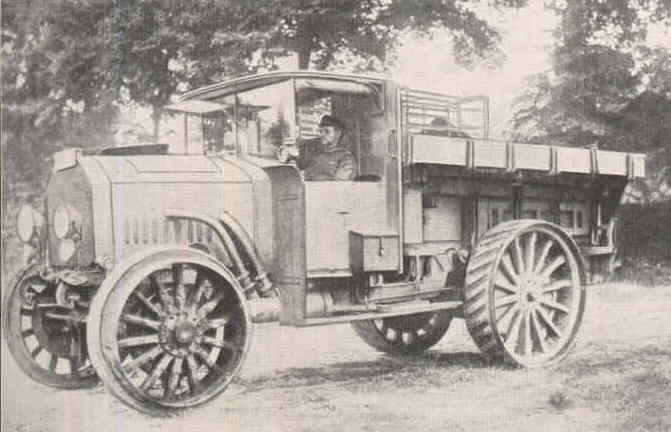

Krupp-Daimler Kraftzugmaschine KD I









German designation :

Artillerie-Kraftzugmaschine Krupp-Daimler 100 PS

Weight :

8000 kg

Axle weight

front :

2500 kg

rear :

5500 kg

Length :

6265 mm

Width :

2170 mm

Height :

2860 mm

Axle articulation :

30°

Engine type :

Mercedes pistons, 6-cylinder

Horse power :

100 hp

Gearbox :

8 speeds for driving forward (3 – 30 km/h)

2 for driving backward (3 and 8.5 km/h)

Max. road speed :

36 km/h with an attached load of 10 t

Max. gradient

without trailer :

25 %

with trailer :

10 %

Chassis :

4x4

Brake power :

1200 revolutions

Track

front :

1200/180 mm

rear :

1400/360 mm

Wheelbase :

3750 mm

Ground clearance :

400 mm

Turning radius :

6.5 m

Daily mileage :

80 km

Fuel tank :

200 litres

Fuel consumption :

3 litres of petrol per km

Max. towing capacity :

9 t

Payload :

1.5 t

Winch

towing capacity :

5000 kg

speed :

0.6 m/second

cable size :

16 mm

cable length :

160 m

Crew :

10 men including the driver

Remarks :

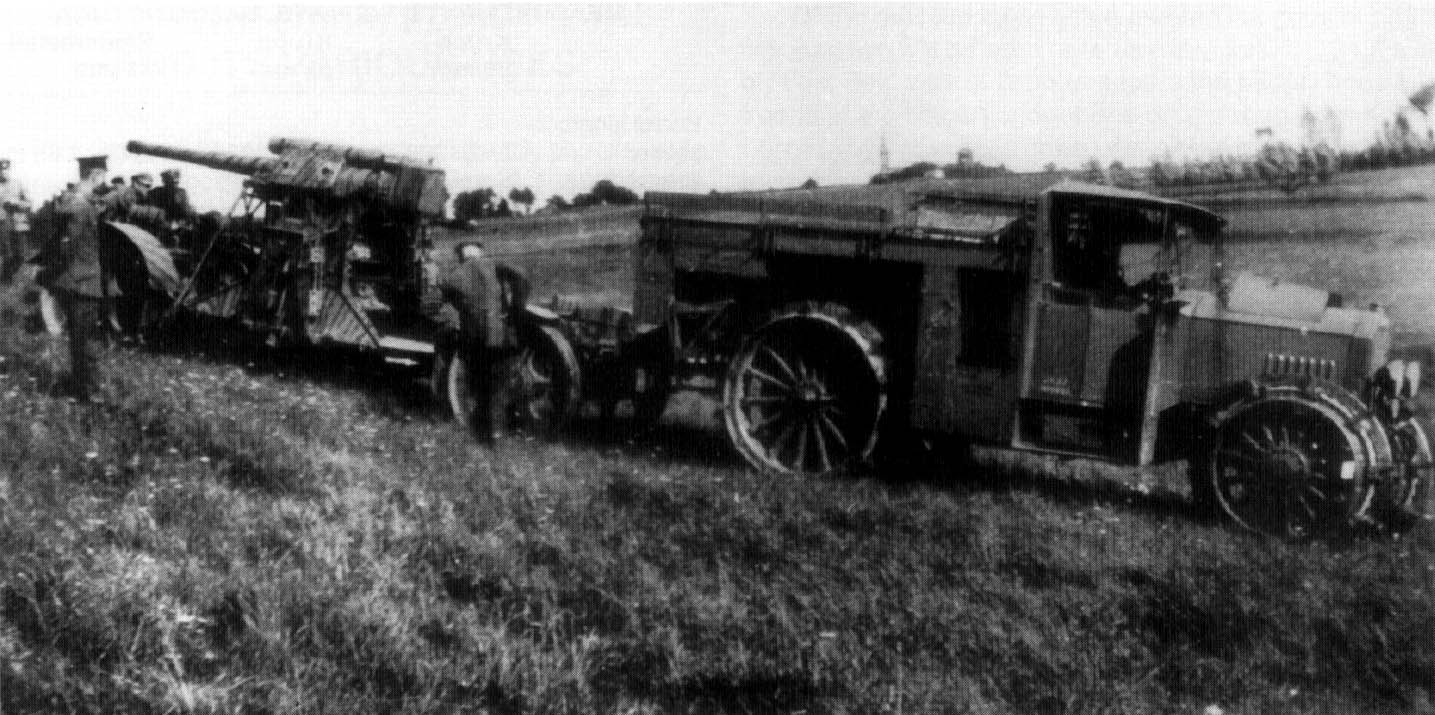

The wooden wheels had iron tyres, because of the lack or raw material caused by the blockade. For driving on smooth or rough ground, the wheels were fitted with shovellike grippers. With the help of a winch on the rear of the vehicle, the unhooked gun trailer could be towed up grades of as much as 45°. During the First World War 1070 of these tractors were manufactured and 855 were delivered to the German Army before the end of the war.
