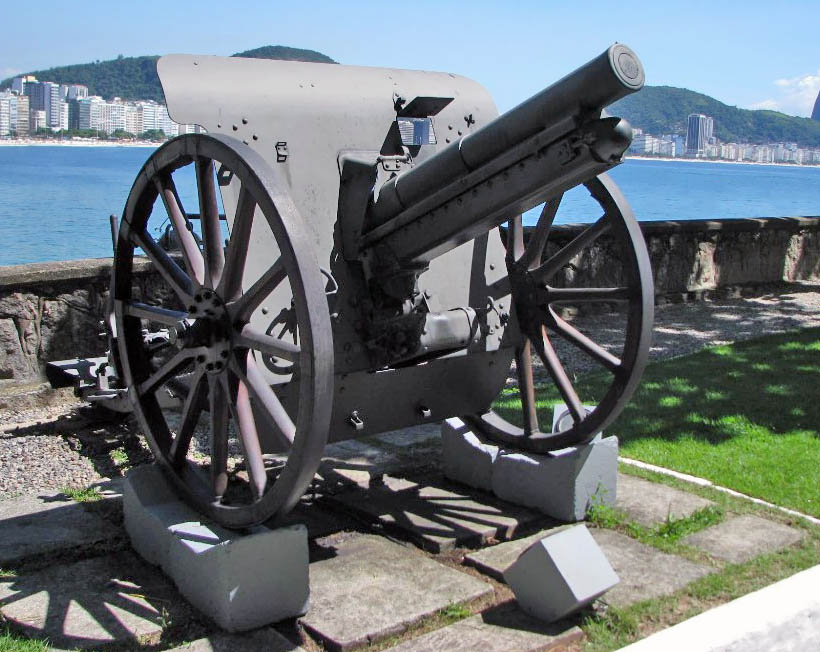

Krupp 75mm Brazilian field gun M. 1913





0K75mmBrazilian_1913





Bulgarian designation :

75-мм Бразилско оръдие

Brazilian designation :

Canhão Krupp 75mm C/30 M 913

Krupp designation :

7,5 cm Feldkanone M. 1913

Calibre :

75mm L/30

Weight of the barrel :

330 kg

Weight in action :

950 kg

Weight in marching order :

1600 kg

Weight of the limber :

650 kg

Weight of ammo wagon :

1554 kg

Barrel length :

2.250 m

Shield thickness :

4 mm

Shell weight :

6 kg – charge 0.9 kg

Shrapnel weight :

6 kg – 295 bullets x 9 g

Muzzle velocity :

510 m/s

Max. range :

6000 m

Elevation :

+ 16° / - 10°

Traversing angle :

6°

Recoil :

1.22 m

Track :

1.48 m

Transport :

drawn by six horses

Ammunition :

limber – 32 shells, wagon body – 56 shells

12 ammunition wagons per battery

Remarks :

Quick firing field gun, recoil system with hydraulic buffer and springs, swinging block breech mechanism, traverse on pivot. It was equipped with panorama telescopic sight, and fitted for an independent line of sight. According to Bulgarian sources, Germany supplied only 8,864 shells for these guns, but they can fire all kinds of Krupp ammunition employed by the Bulgarian artillery during the World War. Moreover since the Bulgarian shell was heavier, it is probable that the muzzle velocity decreased, being like that of the common Krupp guns (500 m/s instead of 510 m/s) and simplifying the work of the Bulgarian gunners.



Pictures from Sofia Military Museum
