Krupp 75mm L/28 BaK
M. 1912
|
|
|
Bulgarian
designation : |
75-мм
скорострелно
балонно
оръдие “Круп” |
|
Krupp designation : |
7,5 Räder B.A.K. L/28.4 mit abschwenkbaren Rädern |
|
Calibre
: |
75mm
L/28.4 |
|
Weight
in action : |
|
|
Weight
in marching order : |
|
|
Barrel
length : |
|
|
Shell weight : |
|
|
Muzzle
velocity : |
510
m/s |
|
Max. range : |
|
|
Elevation : |
+
65° / - 5° |
|
Traversing angle : |
6° |
|
Azimuth : |
360° |
|
Ammunition : |
gun limber –
36 shells |
|

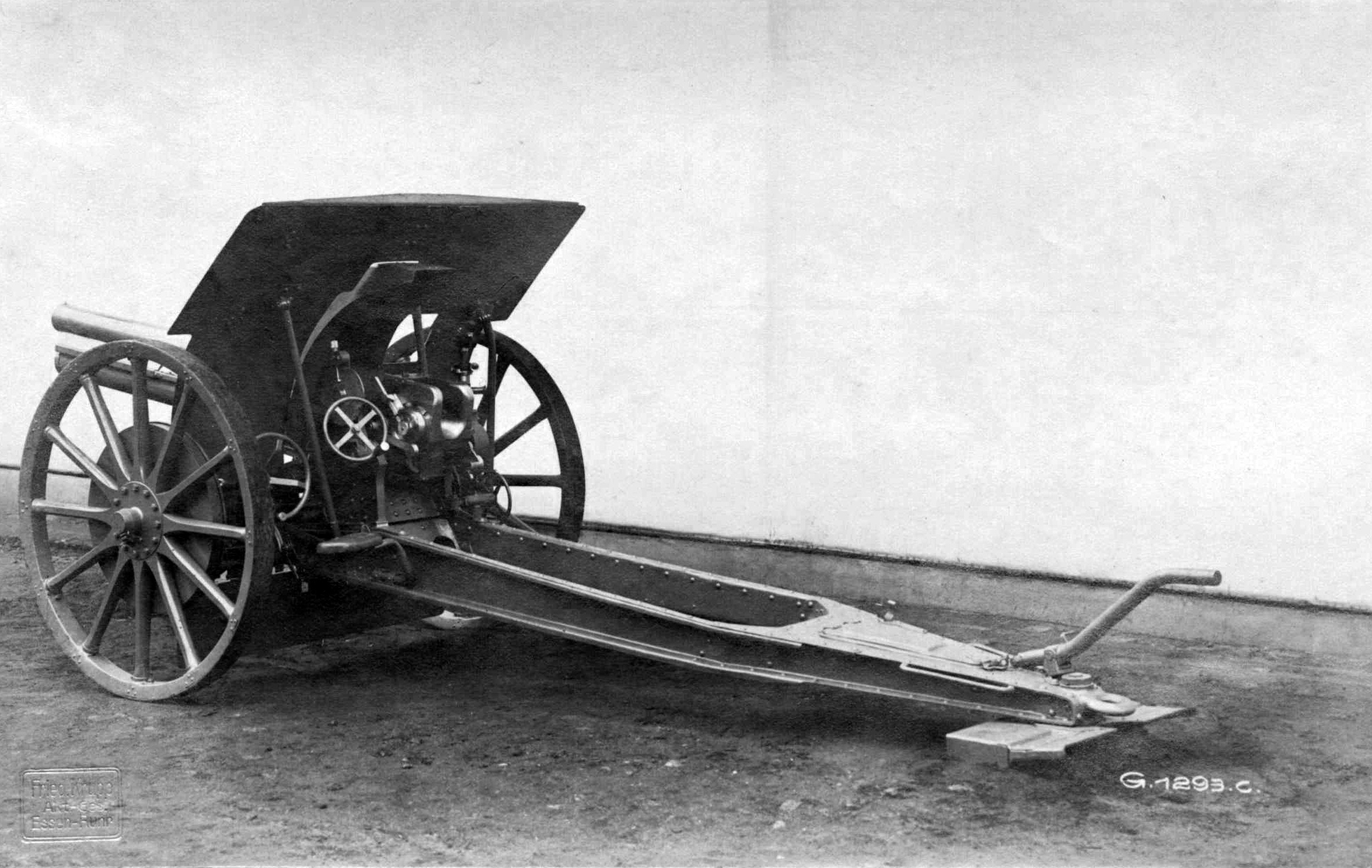

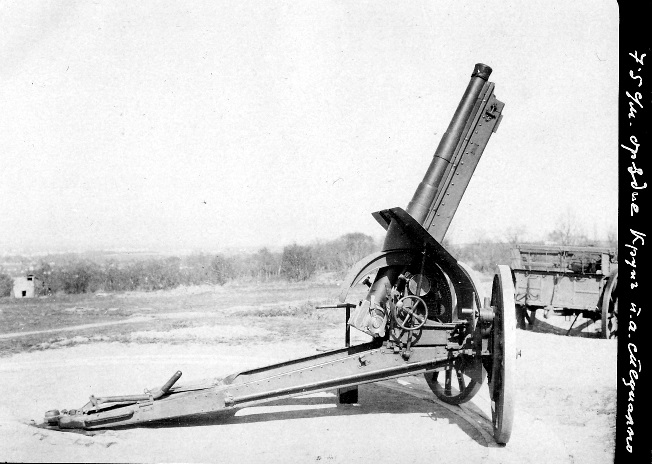

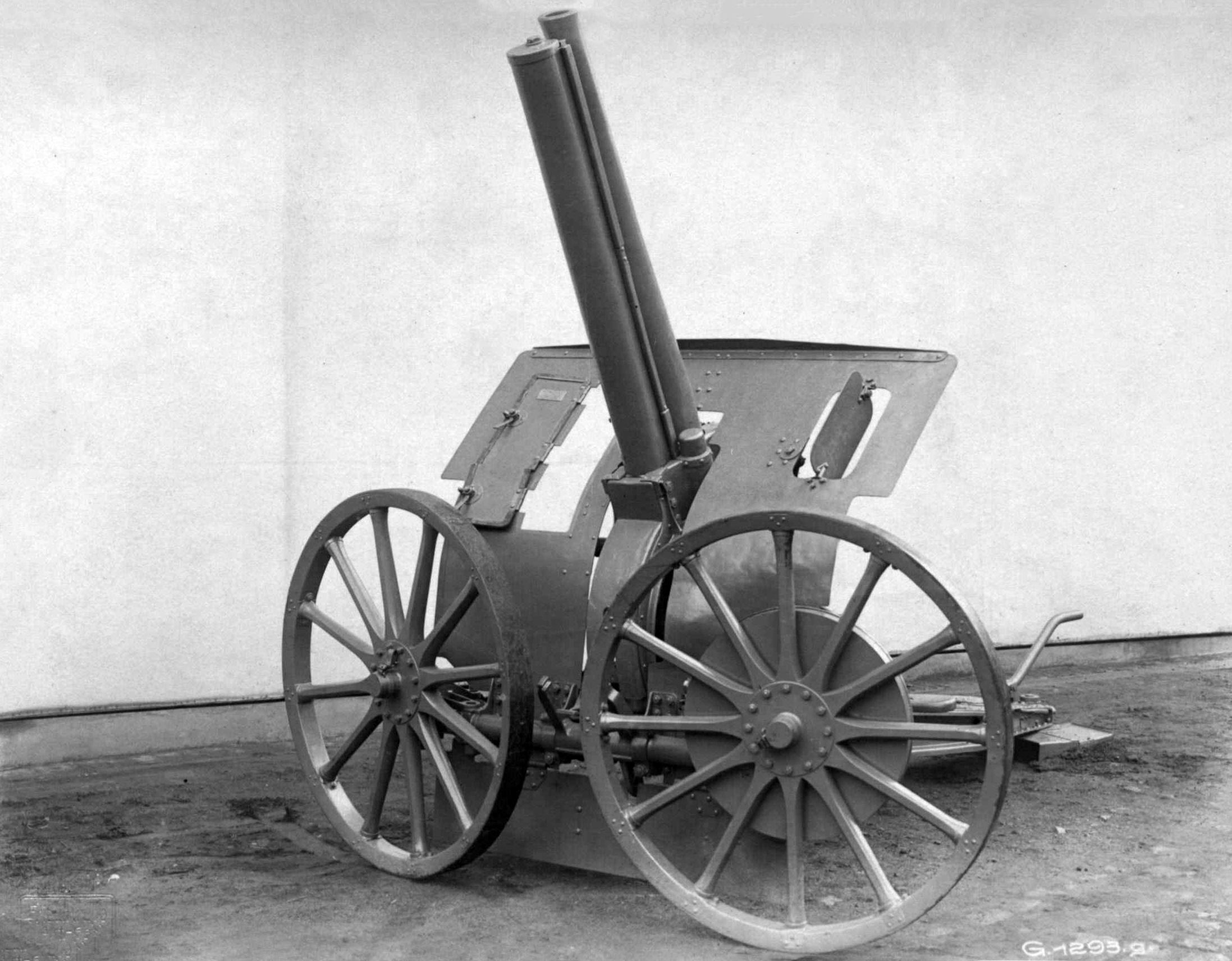

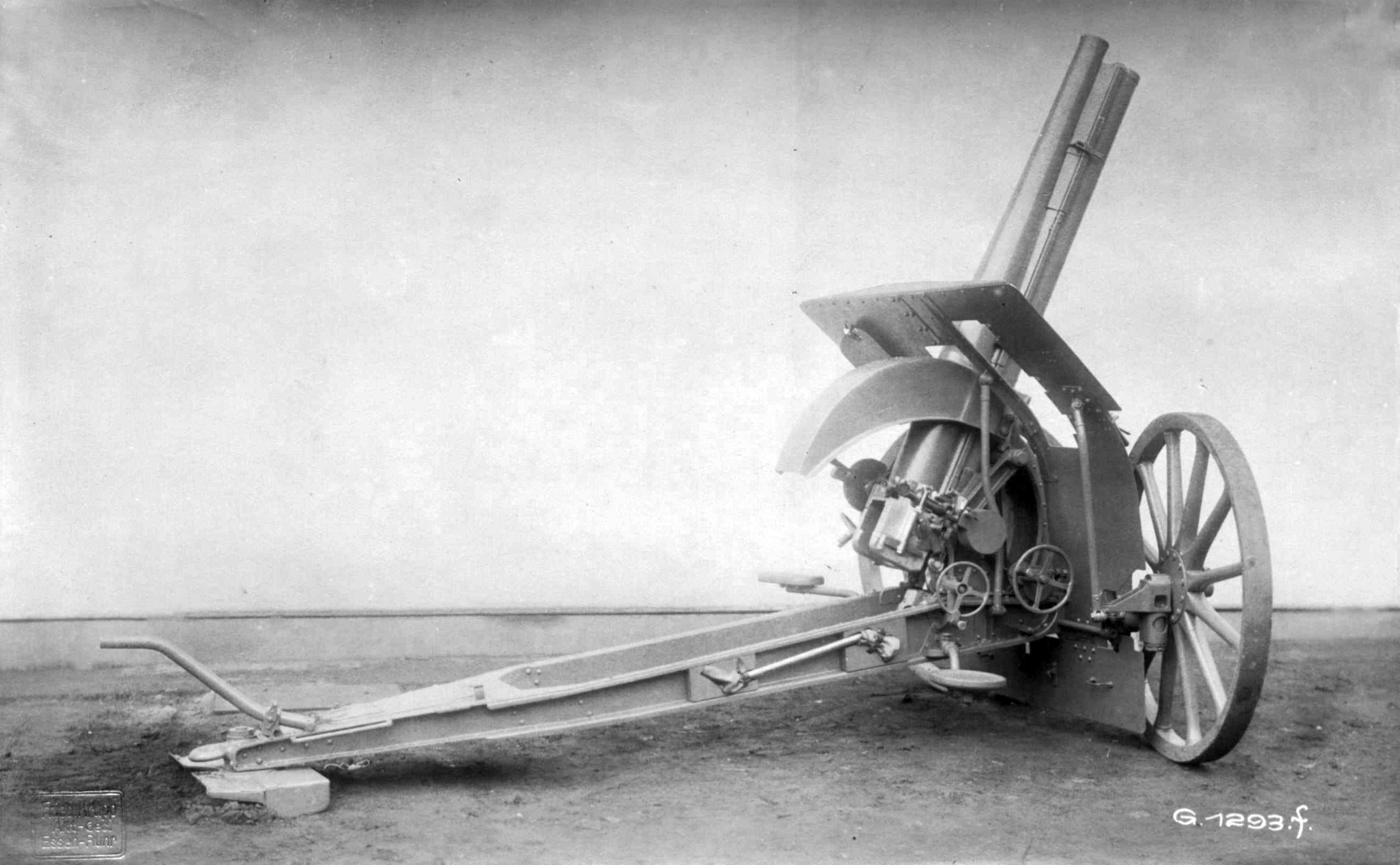

Remarks : Quick firing
B.a.K. gun with hydro-pneumatic recoil mechanism.
It was fitted for independent line of sight. It looked like a shielded field
gun, but the wheels of the carriage could be adjusted in such a way as to permit the gun to revolve around the spade as a
pivot. These guns fired the ordinary Turkish shrapnel
with firing tables arranged specifically for them. |
|
|
|
|
|
|
