Krupp 75mm L/30 BaK
M. 1912
|
|
|
Bulgarian
designation : |
75-мм
скорострелно
балонно
оръдие “Круп” |
|
Krupp designation : |
7,5 Räder B.A.K. L/30 mit abschwenkbaren Rädern |
|
Calibre
: |
75mm
L/30 |
|
Weight
in action : |
1300
kg |
|
Weight
in marching order : |
2200
kg |
|
Barrel
length : |
|
|
Shell weight : |
|
|
Muzzle
velocity : |
510
m/s |
|
Max. range : |
|
|
Elevation : |
+ 70° / - 10° |
|
Traversing angle : |
6° |
|
Azimuth : |
360° |
|
Ammunition : |
gun limber –
24 shells, wagon limber –
24 shells, wagon body – 50 shells |
|

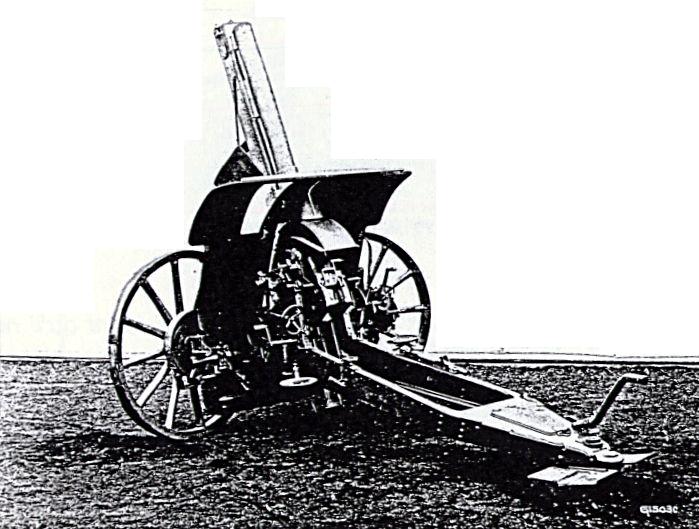

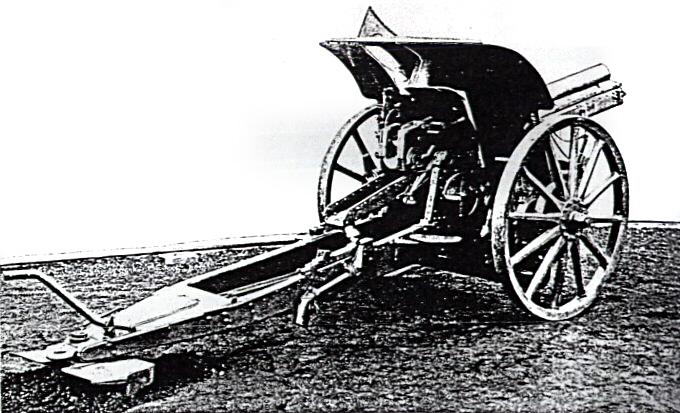

Remarks : Quick firing
B.a.K. gun with recoil system with hydraulic buffer
and springs. It was fitted for independent line of sight. It looked like a
shielded field gun, but the wheels of the carriage could be adjusted in such
a way as to permit the gun to
revolve around the spade as a pivot. These guns fired the ordinary
Turkish shrapnel with firing tables arranged specifically for them. |
|
|
|
