Schneider-Canet 120mm field howitzer M. 1909

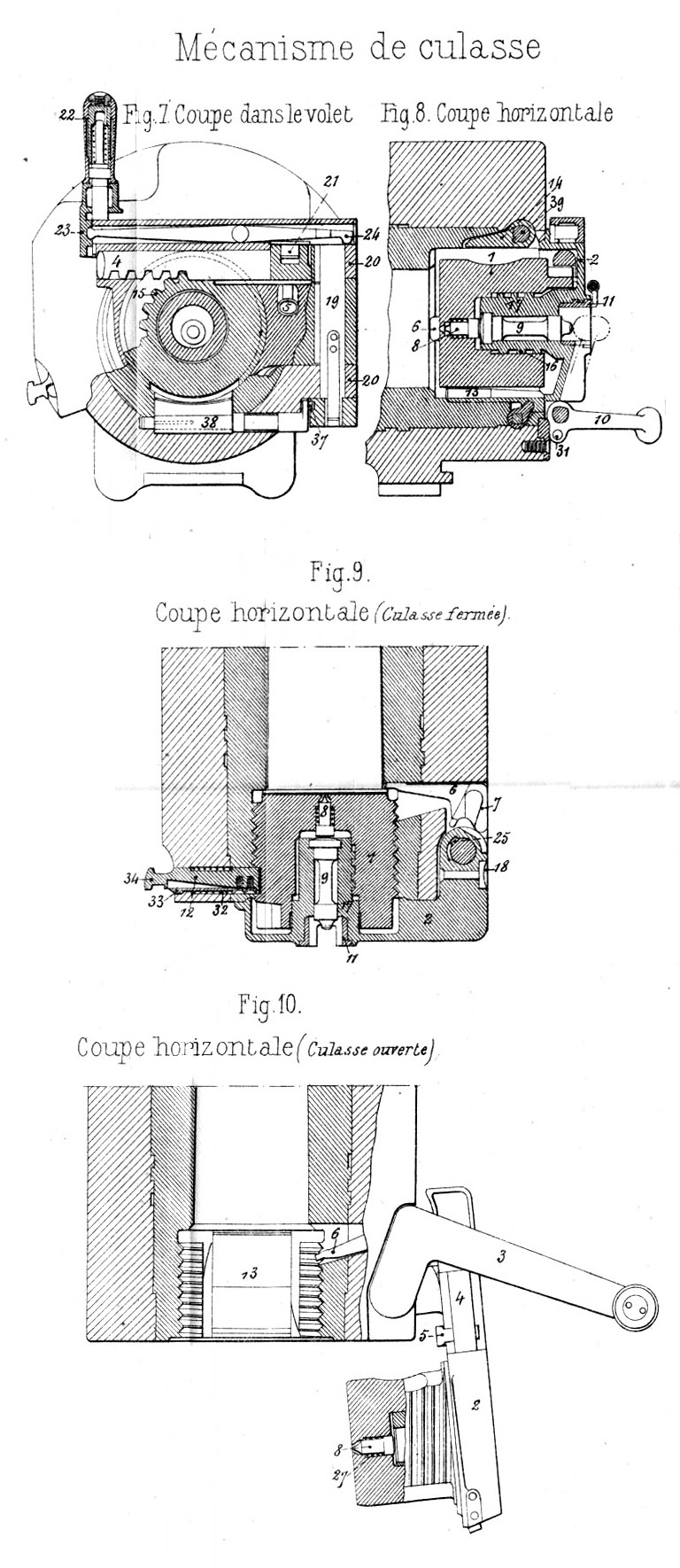

fig. 7 section in the breech carrier

fig. 8 horizontal section

fig. 9 horizontal section (breech locked)

fig. 10 horizontal section (breech opened)

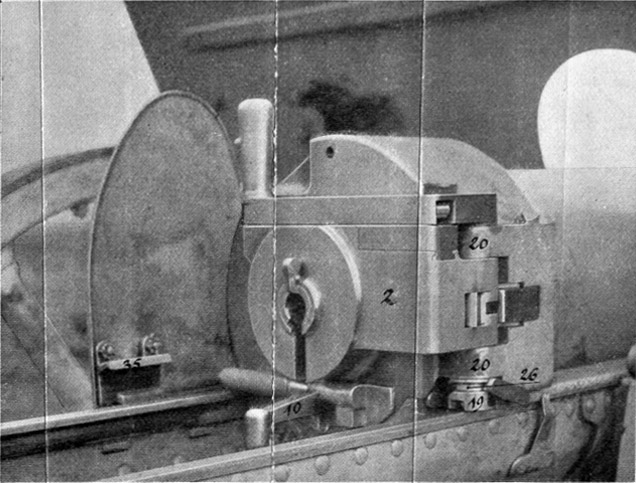

breech locked (left view)

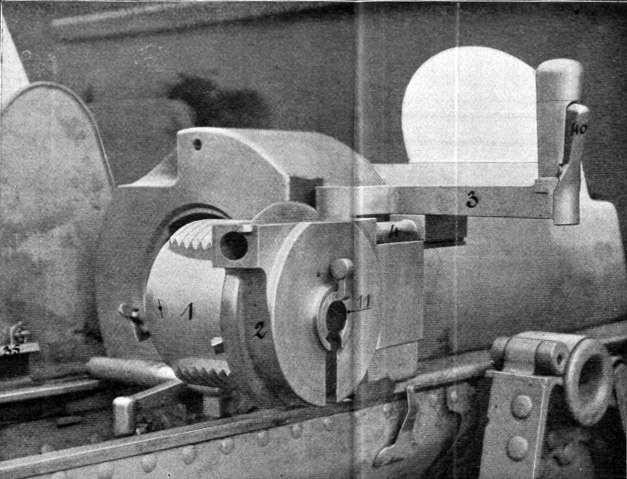

breech opened (left view)

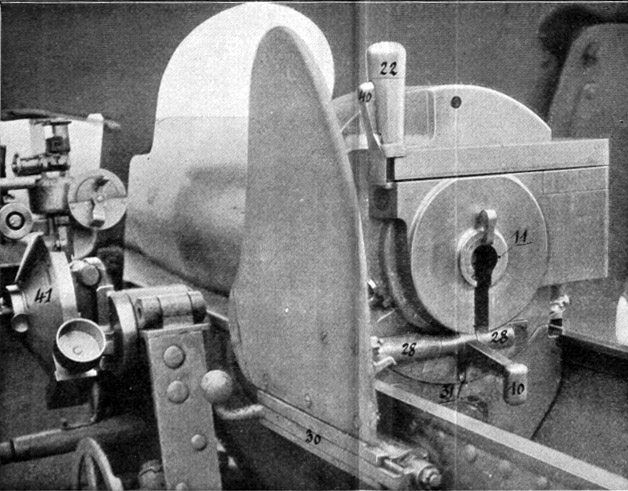

breech locked (right view)

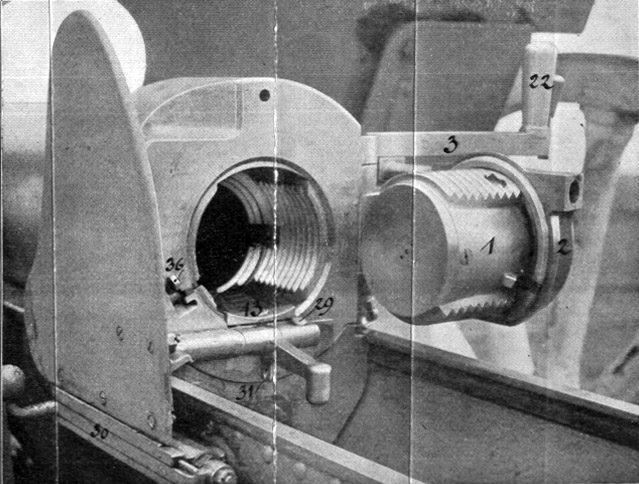

breech opened (right view)



1 breech screw

4 rack

7 disengaging guide

10 hammer

13 loading tray

16 breech recess

19 hinge bolt

22 lever handle

26 cam slot

29 safety bolt

32 cylindrical spiral spring

35 ramp

38 rotation spindle

2 breech carrier

5 rack lock

8 striker

11 hammer lock

14 loading tray

17 riding strip

20 arc lugs

23 24 ratchets

27 striker recovery spring

30 trigger rod

33 flat spring

36 valve calm

39 loading tray pin

3 operating lever

6 extractor

9 striker plunger

12 safety device

15 thooted wheel

18 block stop

21 trunnion

25 fixing stud

28 hammer carriers

31 hammer eye

34 dovetail

37 operating handle
